Prodcut Number:
MFLamps LED driving lights combine superior performance with exceptional durability. Certified with ISO9001, IATF16949, CE, and RoHS, our driving lights ensure reliable illumination for automotive, off-road, and heavy-duty applications.
Voltage: 10V – 30V
Power: 69W
Light Output: 5520LM
Beam Pattern: High beam
Waterproof Rating: IP68/IP69K
Mounting: Side-mountable & Bracket-adjustable
Shock Resistance: Reinforced housing for vibration and impact resistance
Lifespan: Up to 50,000 hours
Certified, rugged, and high-performance—MFLamps LED driving lights provide unmatched brightness and reliability for any driving condition.
| Voltage | 10-30V | Amperage | 5.75A |
| Consumption | 69W | Operational Lumen | 5520 Lumen |
| Color Temperature | 5700 K for crystal version | Light pattern | HIGH BEAM |
| Color | Crystal | Connector | DT 2 pin |
| Mounting | Pedestal | Fixation | To be screwed |
| Lens Material | Polycarbonate plastic cover | Housing Material | Aluminium |

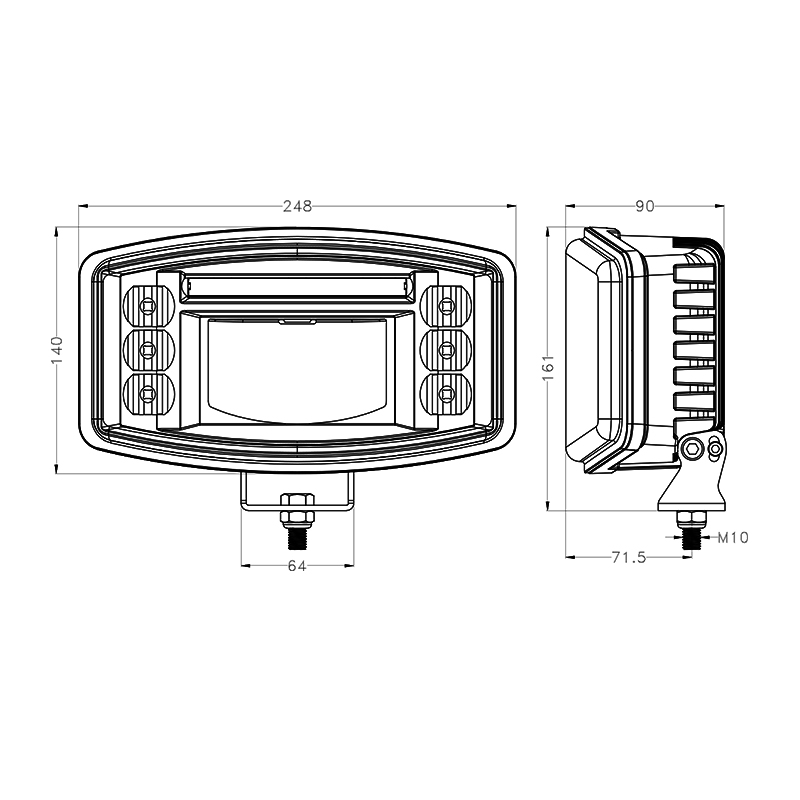

| size(Width * Depth * Height) | 248mm * 90mm * 161mm | Weight | 0,55 Kg |
| IP protection | IP68 - IP69K | Polarity | Protected against reverse voltage |
| Electronic Thermal Management | Full output at +35°C ambiant, 25 % dimmed at + 50°C ambiant | Operation Temperatures | -40°C to +85°C |
| Load Dump | 36V CONTINUOUS / ISO 7637-2 Pulse 5a | Salt Spray Test | ISO 9227 |
| Vibration Resistance | 15 Grms, from 24Hz to 2000Hz | Shock resistance | 60G |
| Lifetime | 50 000 operating hours | EMC | ISO 13766 - ISO 14982 - ISO 12985 - CISPR25 Class 5 |
With over 10 years of experience in LED lighting for automotive and off-highway equipment, M&F provides customized, high-quality solutions. Our tailored designs and reliable performance drive client growth and success.
