Prodcut Number:

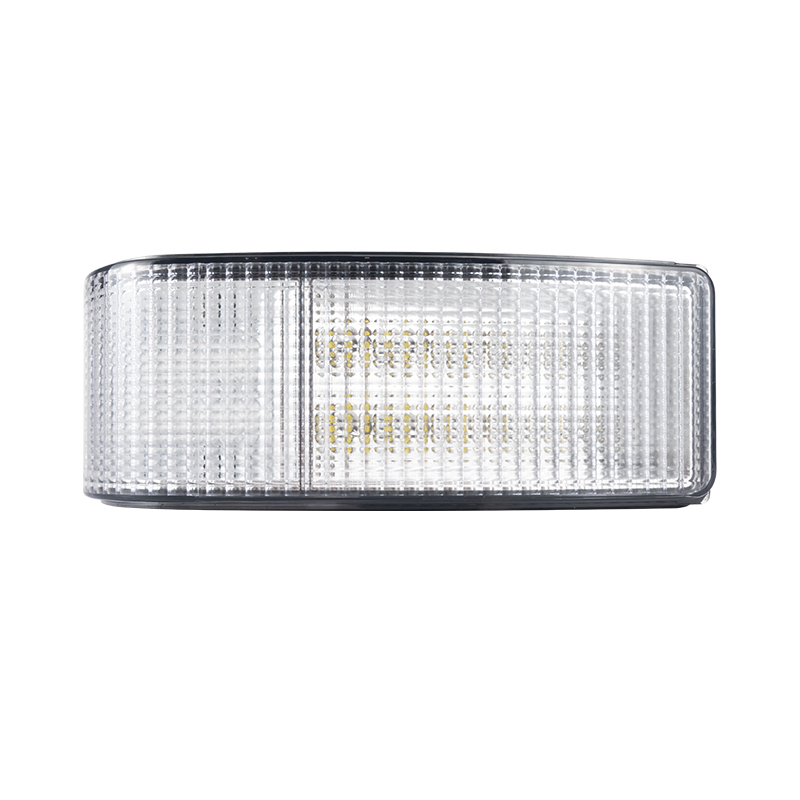

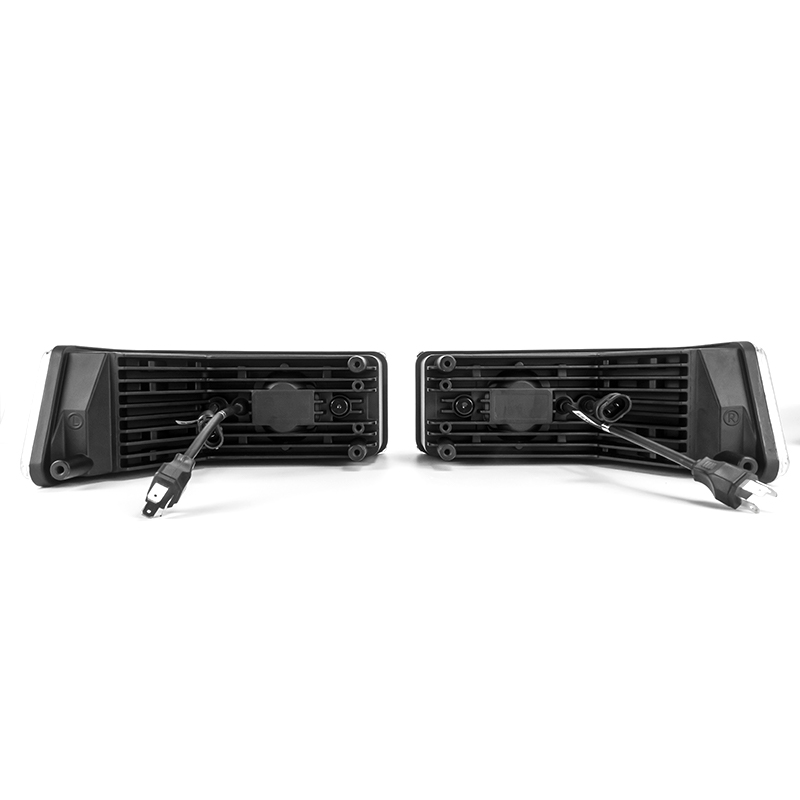

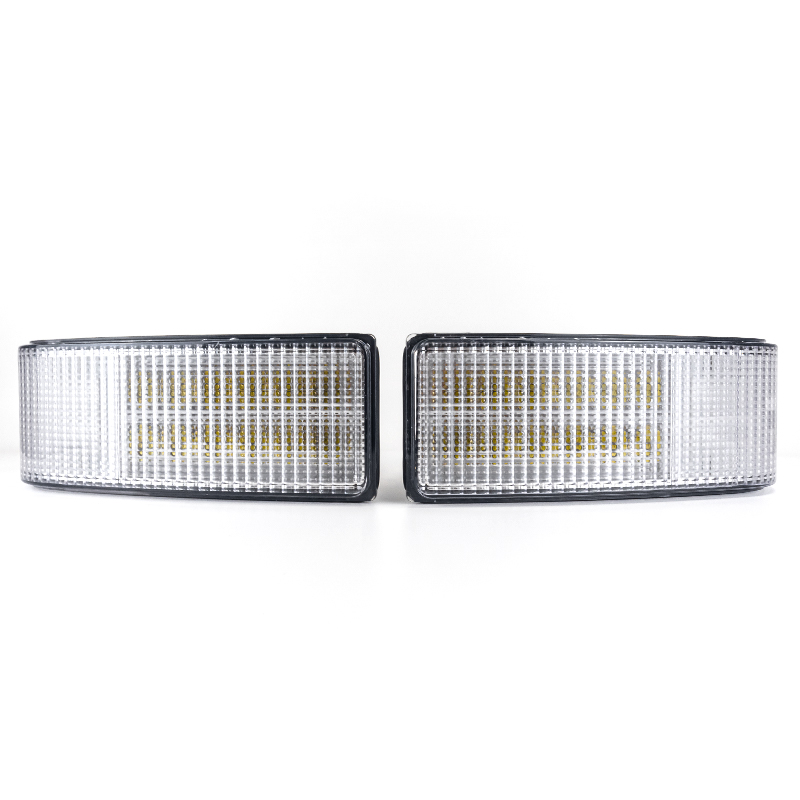

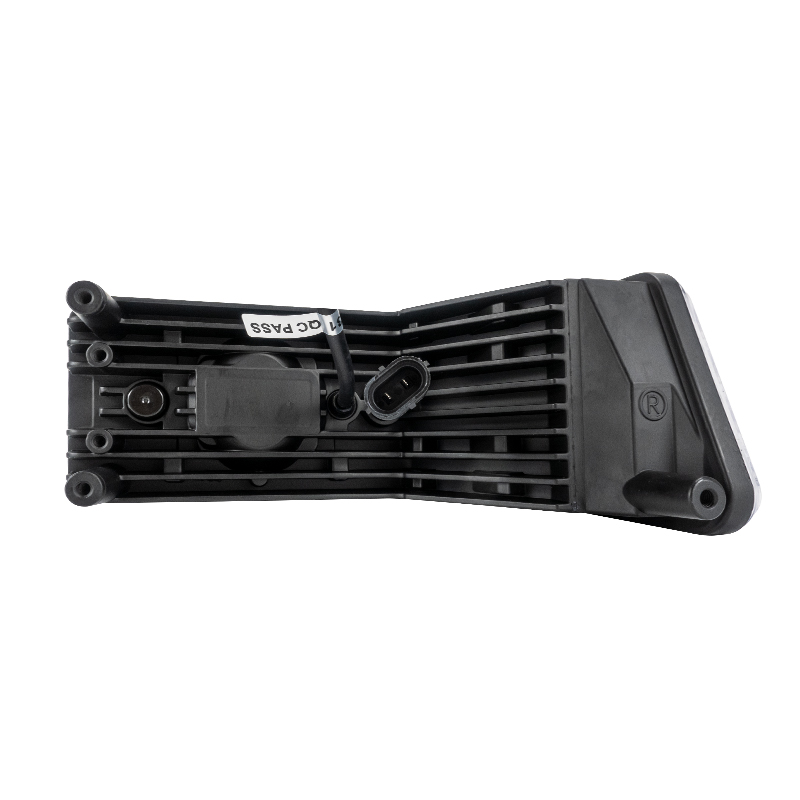

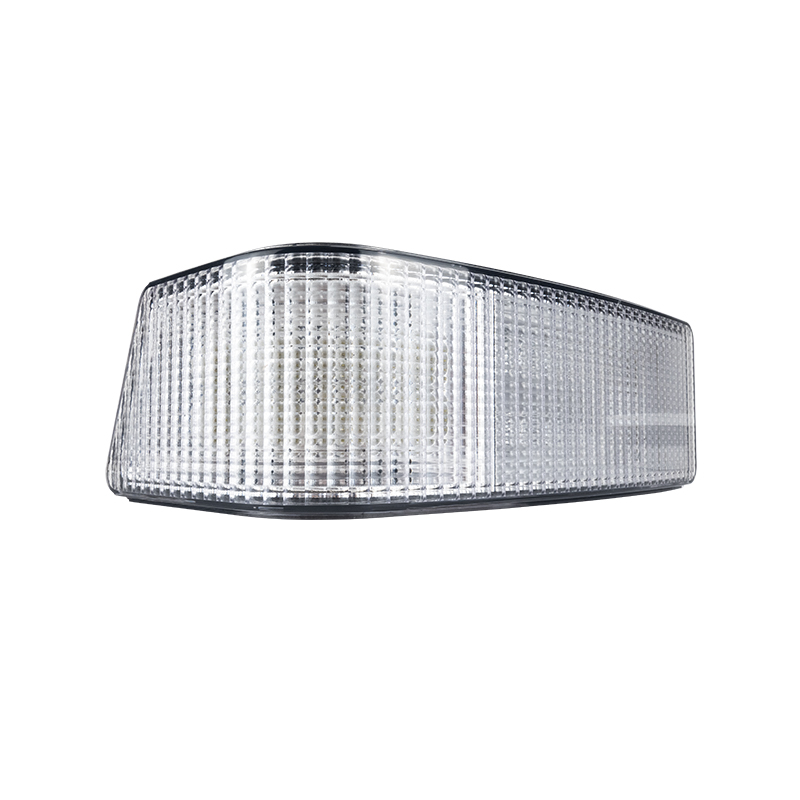

MFLamps LED Driving Light delivers powerful 10400LM brightness with IP68/69K waterproofing, heavy-duty shock resistance, and a 50,000-hour lifespan. Certified ISO9001, IATF16949, CE & RoHS, it’s built for demanding automotive, off-road, and commercial driving applications.
Replaces Case IH® Part Numbers:
Left: 232449A2, 232451A2, 365842A1, 87429389
Right: 232448A2, 232450A2, 365841A1, 87429390
Certified, engineered for reliability, energy efficiency, and extreme durability – MFLamps LED Driving Light ensures superior road illumination in all driving conditions.
| Voltage | 12/24 V | Amperage | 10.83A |
| Consumption | 130W | Operational Lumen | 10400 Lumen |
| Color Temperature | 6000 K for crystal version | Light pattern | HIGH/LOW |
| Color | Crystal | Connector | / |
| Mounting | Pedestal | Fixation | To be screwed |
| Lens Material | Polycarbonate plastic cover | Housing Material | Aluminium |
| size(Width * Depth * Height) | 271mm * 224mm *108mm | Weight | 0,55 Kg |
| IP protection | IP68 - IP69K | Polarity | Protected against reverse voltage |
| Electronic Thermal Management | Full output at +35°C ambiant, 25 % dimmed at + 50°C ambiant | Operation Temperatures | -40°C to +85°C |
| Load Dump | 36V CONTINUOUS / ISO 7637-2 Pulse 5a | Salt Spray Test | ISO 9227 |
| Vibration Resistance | 15 Grms, from 24Hz to 2000Hz | Shock resistance | 60G |
| Lifetime | 30 000 operating hours | EMC | ECE R10, CISPR25 CLASS 4 |
With over 10 years of experience in LED lighting for automotive and off-highway equipment, M&F provides customized, high-quality solutions. Our tailored designs and reliable performance drive client growth and success.
