Prodcut Number:

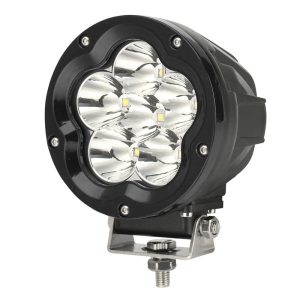

Latest generation LED work light with R23 reverse approval. As standard this work light includes features such as the EMC CISPR25 class 5 as well as the integrated load dump, to meet the most severe manufacturer specifications.
| Voltage | 10-30V | Amperage | 7.5A |
| Consumption | 90W | Operational Lumen | 4800 Lumen |
| Color Temperature | 5700 K for crystal version | Light pattern | HIGH BEAM / WHITE DRL / YELLOW DRL |
| Color | Crystal | Connector | / |
| Mounting | Pedestal | Fixation | To be screwed |
| Lens Material | Polycarbonate plastic cover | Housing Material | Aluminium |
| size(Width * Depth * Height) | 126.5mm * 65mm * 143.3mm | Weight | 0,55 Kg |
| IP protection | IP68 - IP69K | Polarity | Protected against reverse voltage |
| Electronic Thermal Management | Full output at +35°C ambiant, 25 % dimmed at + 50°C ambiant | Operation Temperatures | -40°C to +85°C |
| Load Dump | 36V CONTINUOUS / ISO 7637-2 Pulse 5a | Salt Spray Test | ISO 9227 |
| Vibration Resistance | 15 Grms, from 24Hz to 2000Hz | Shock resistance | 60G |
| Lifetime | 50 000 operating hours | EMC | ISO 13766 - ISO 14982 - ISO 12985 - CISPR25 Class 5 |
With over 10 years of experience in LED lighting for automotive and off-highway equipment, M&F provides customized, high-quality solutions. Our tailored designs and reliable performance drive client growth and success.
