Prodcut Number:
MFLamps LED warning lights combine superior visibility with rugged durability. Certified with ISO9001, IATF16949, CE, and RoHS, our warning lights deliver reliable performance for emergency vehicles, construction sites, and industrial safety applications.
Voltage: 10V – 110V
Power: 20W
Light Output: 1600LM
Waterproof Rating: IP68/IP69K
Shock Resistance: Heavy-duty, impact-resistant housing
Lifespan: Up to 50,000 hours
Certified, weatherproof, and highly visible—MFLamps LED warning lights provide dependable alert signals in all conditions.
| Voltage | 10-110V | Amperage | 1.67A |
| Consumption | 20W | Operational Lumen | 1600 Lumen |
| Color Temperature | 7200 K for crystal version | Light pattern | RED/BLUE/GREEN |
| Color | Crystal | Connector | / |
| Mounting | Pedestal | Fixation | To be screwed |
| Lens Material | Polycarbonate plastic cover | Housing Material | Aluminium |

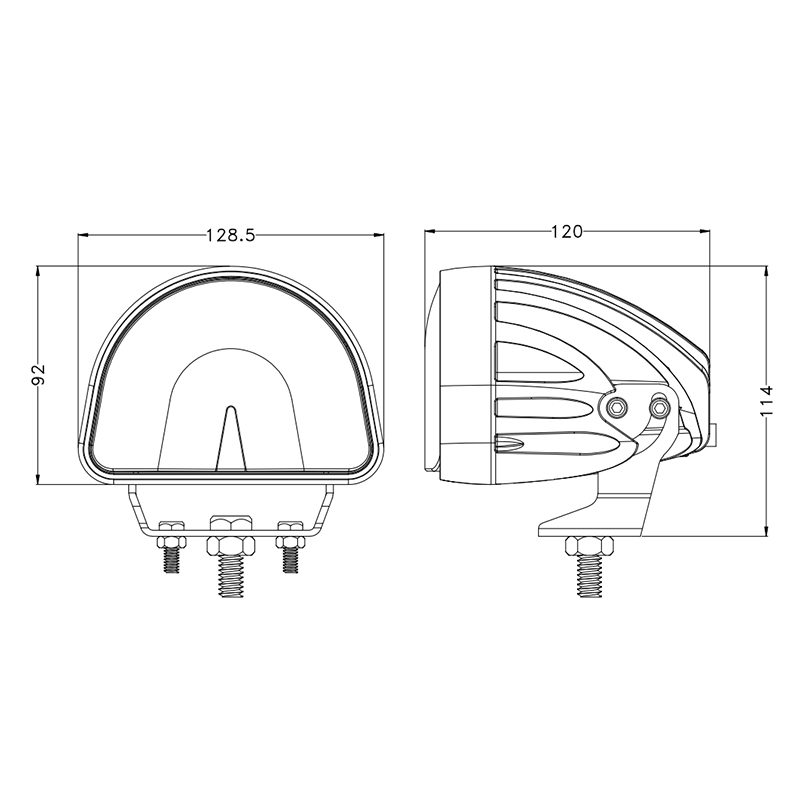

| size(Width * Depth * Height) | 128.5mm *92mm * 114mm | Weight | 0,55 Kg |
| IP protection | IP68 - IP69K | Polarity | Protected against reverse voltage |
| Electronic Thermal Management | Full output at +35°C ambiant, 25 % dimmed at + 50°C ambiant | Operation Temperatures | -40°C to +80°C |
| Load Dump | 36V CONTINUOUS / ISO 7637-2 Pulse 5a | Salt Spray Test | ISO 9227 |
| Vibration Resistance | 15 Grms, from 24Hz to 2000Hz | Shock resistance | 60G |
| Lifetime | 50 000 operating hours | EMC | ISO 13766 - ISO 14982 - ISO 12985 - CISPR25 Class 5 |
With over 10 years of experience in LED lighting for automotive and off-highway equipment, M&F provides customized, high-quality solutions. Our tailored designs and reliable performance drive client growth and success.
