Prodcut Number:
MFLamps LED Work Light delivers powerful 5200LM brightness with IP68/69K waterproofing, heavy-duty shock resistance, and a 50,000-hour lifespan. Certified ISO9001, IATF16949, CE & RoHS, it’s built for demanding automotive, marine, and industrial applications.
Replaces OEM Part Numbers:
AH212523 & RE181281
Certified,engineered for reliability, energy efficiency, and extreme durability—MFLamps LED Work Light ensures superior illumination in harsh environments.
| Voltage | 12/24 V | Amperage | 5.42A |
| Consumption | 65W | Operational Lumen | 5200Lumen |
| Color Temperature | 5700 K for crystal version | Light pattern | FLOOD |
| Color | Crystal | Connector | / |
| Mounting | Pedestal | Fixation | To be screwed |
| Lens Material | Polycarbonate plastic cover | Housing Material | Aluminium |

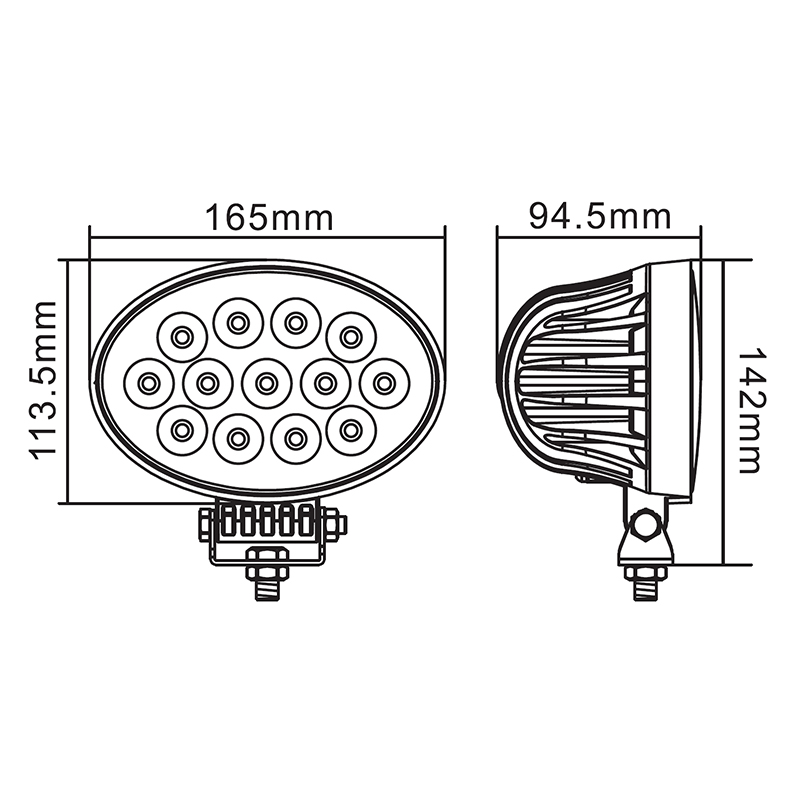

| size(Width * Depth * Height) | 165mm *98mm *141mm | Weight | 0,55 Kg |
| IP protection | IP68 - IP69K | Polarity | Protected against reverse voltage |
| Electronic Thermal Management | Full output at +35°C ambiant, 25 % dimmed at + 50°C ambiant | Operation Temperatures | -40°C to +85°C |
| Load Dump | 36V CONTINUOUS / ISO 7637-2 Pulse 5a | Salt Spray Test | ISO 9227 |
| Vibration Resistance | 15 Grms, from 24Hz to 2000Hz | Shock resistance | 60G |
| Lifetime | 30 000 operating hours | EMC | ECE R10, CISPR25 CLASS 4 |
With over 10 years of experience in LED lighting for automotive and off-highway equipment, M&F provides customized, high-quality solutions. Our tailored designs and reliable performance drive client growth and success.
