Prodcut Number:

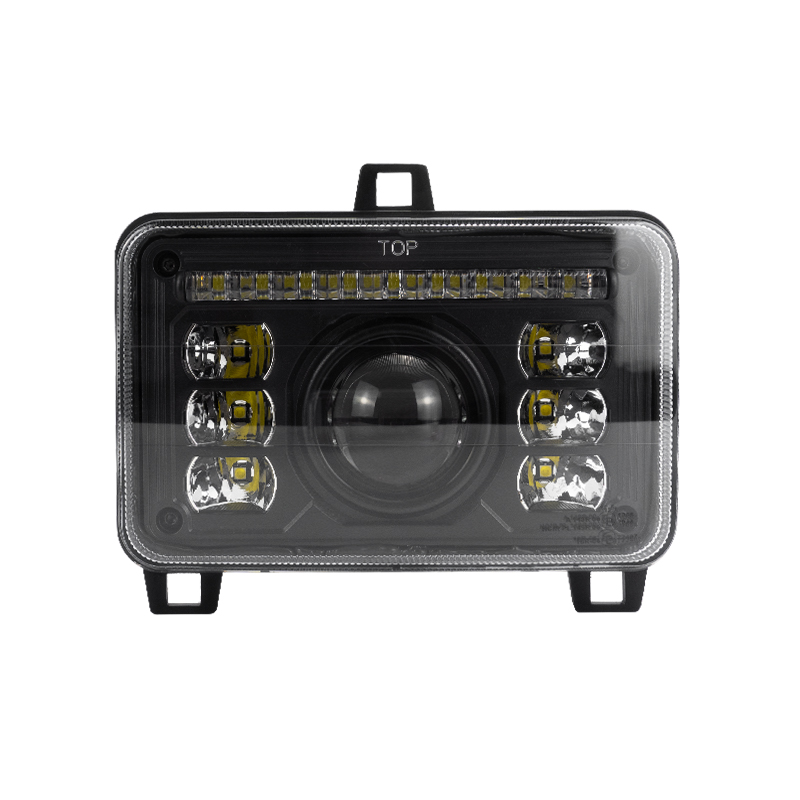

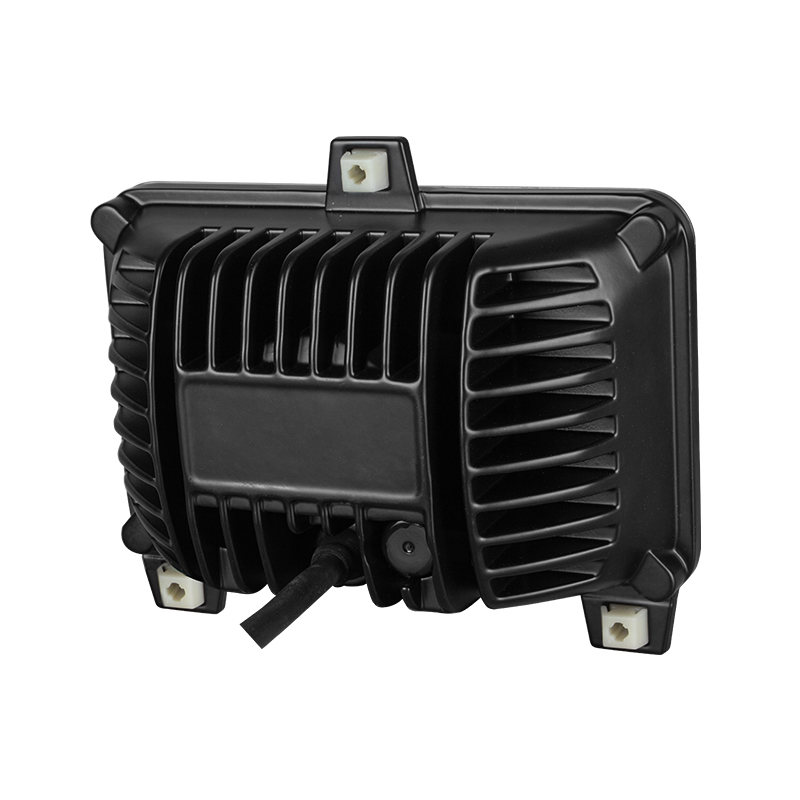

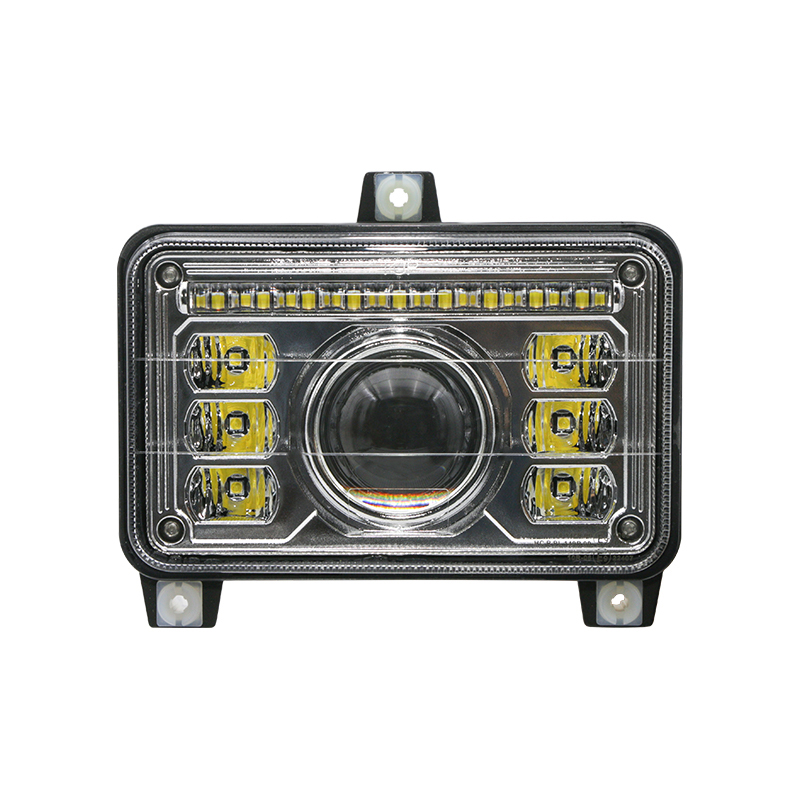

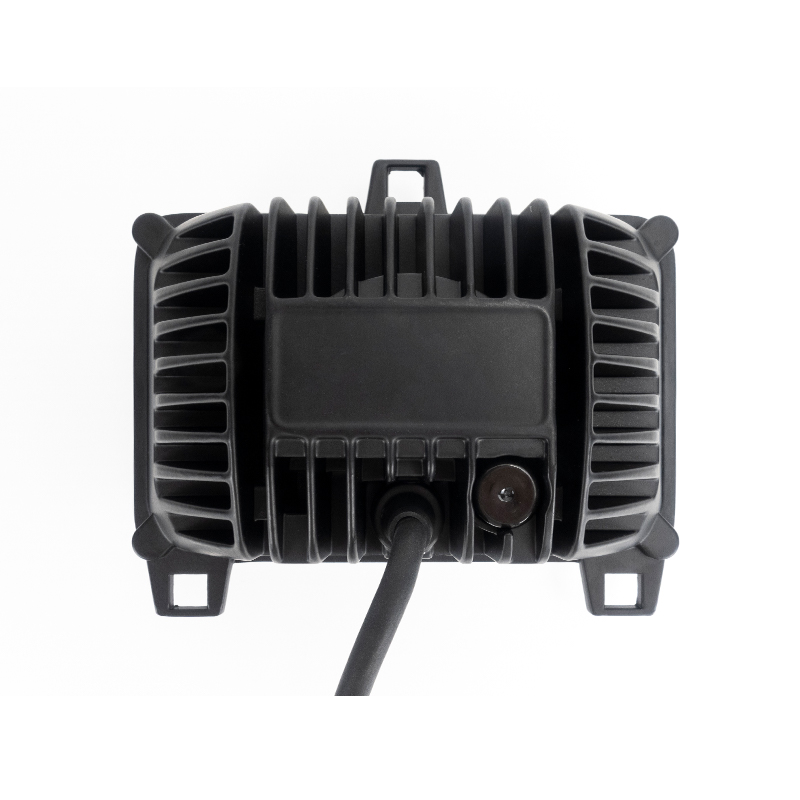

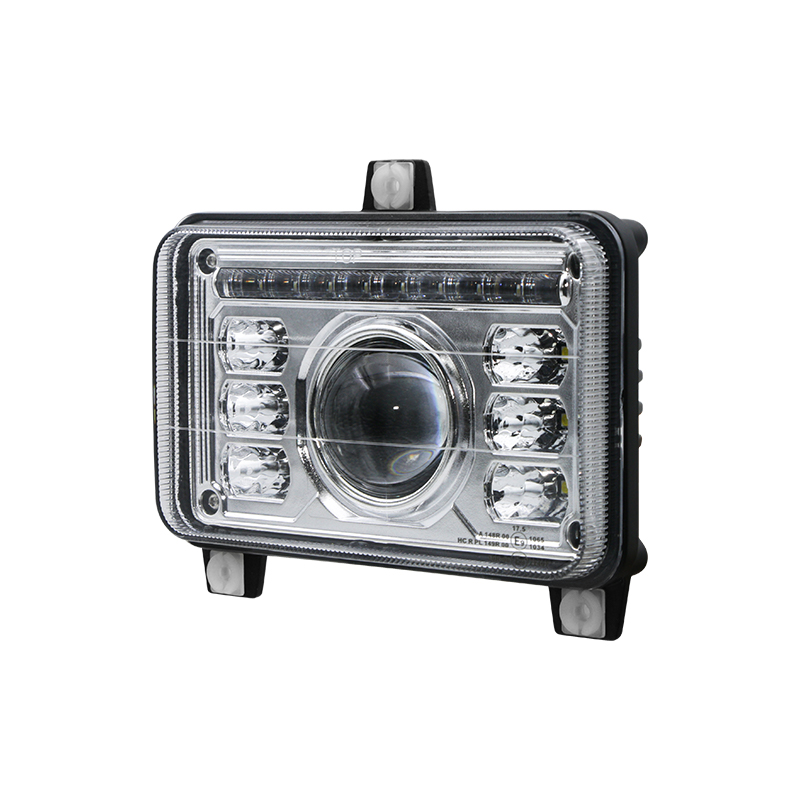

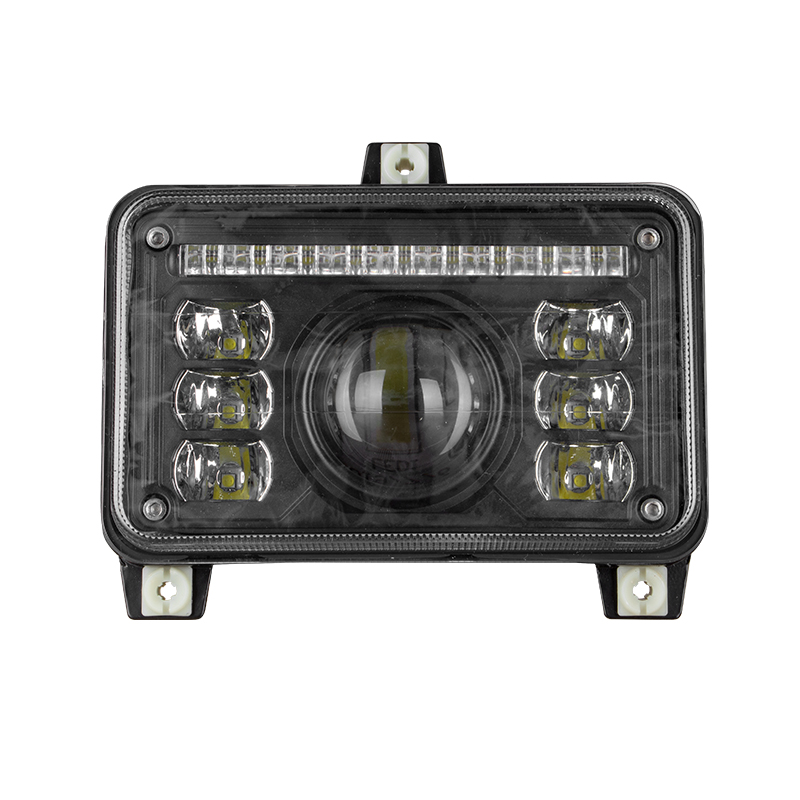

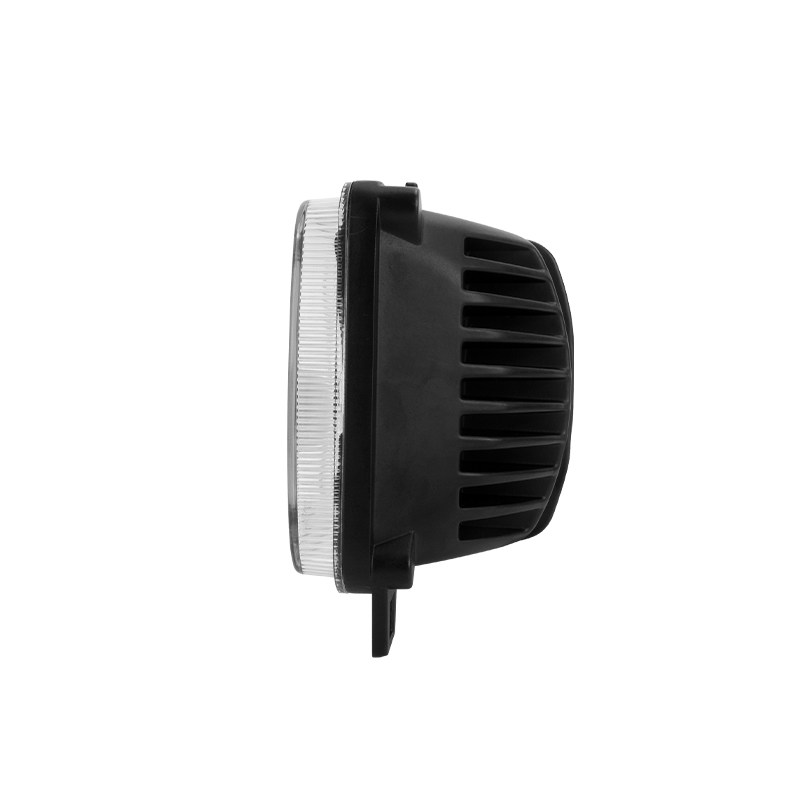

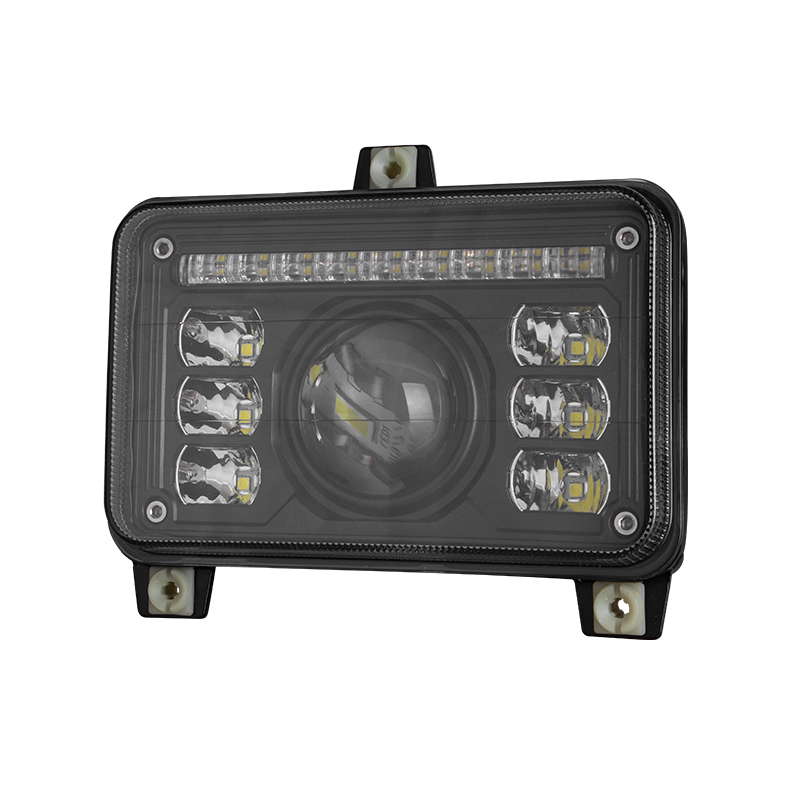

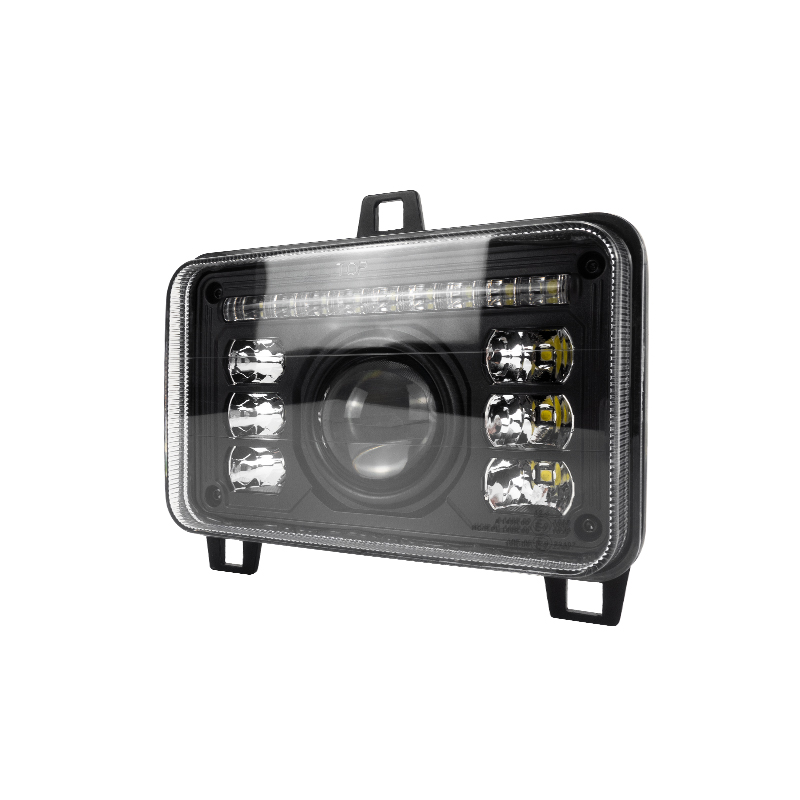

Delivering 4600LM of powerful brightness, our IP68/69K waterproof LED headlight is built with heavy-duty shock resistance and a 50,000-hour lifespan. Certified ISO9001, IATF16949, CE & RoHS, it’s engineered for automotive, marine, and industrial use.
MF 72514546
V31547300,V31547310, V30260800, V30260810
134672040,
134672050, 47106799, 05371000
83999520, F0NN13005AB, 82014129, 9969131, 82014422, 82014423
Certified,reliable,andenergy-efficient,theMFLamps LED Headlight ensures superior visibility in the toughest conditions.
| Voltage | 12/24 V | Amperage | 5.75A |
| Consumption | 69W | Operational Lumen | 4600Lumen |
| Color Temperature | 5700 K for crystal version | Light pattern | HIGH/LOW |
| Color | Crystal | Connector | / |
| Mounting | Pedestal | Fixation | To be screwed |
| Lens Material | Polycarbonate plastic cover | Housing Material | Aluminium |

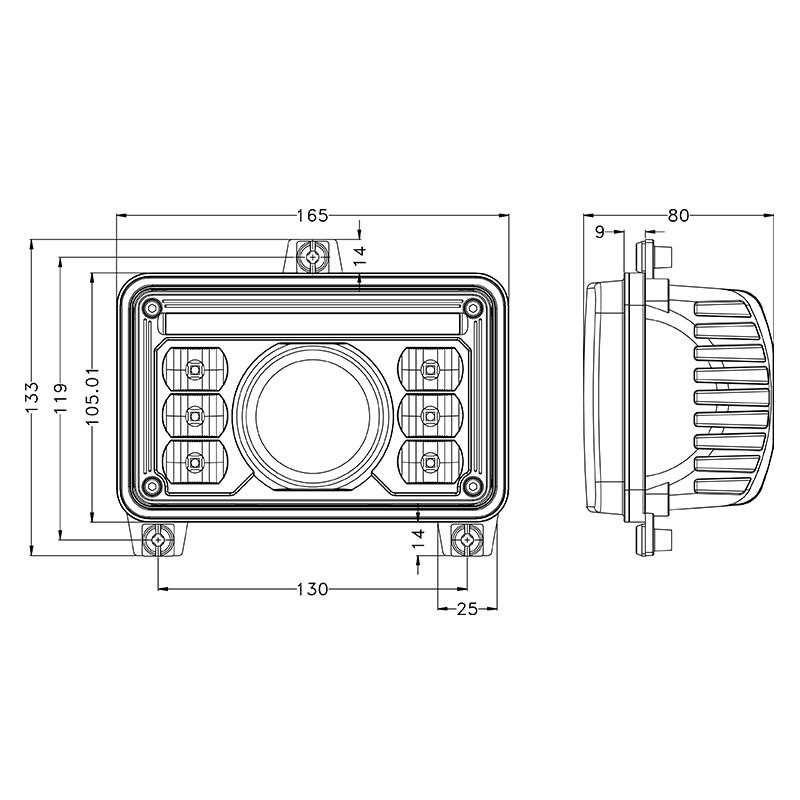

| size(Width * Depth * Height) | 165mm *80mm *135mm | Weight | 0,55 Kg |
| IP protection | IP68 - IP69K | Polarity | Protected against reverse voltage |
| Electronic Thermal Management | Full output at +35°C ambiant, 25 % dimmed at + 50°C ambiant | Operation Temperatures | -40°C to +85°C |
| Load Dump | 36V CONTINUOUS / ISO 7637-2 Pulse 5a | Salt Spray Test | ISO 9227 |
| Vibration Resistance | 15 Grms, from 24Hz to 2000Hz | Shock resistance | 60G |
| Lifetime | 30 000 operating hours | EMC | ECE R10, CISPR25 CLASS 4 |
With over 10 years of experience in LED lighting for automotive and off-highway equipment, M&F provides customized, high-quality solutions. Our tailored designs and reliable performance drive client growth and success.
