Prodcut Number:

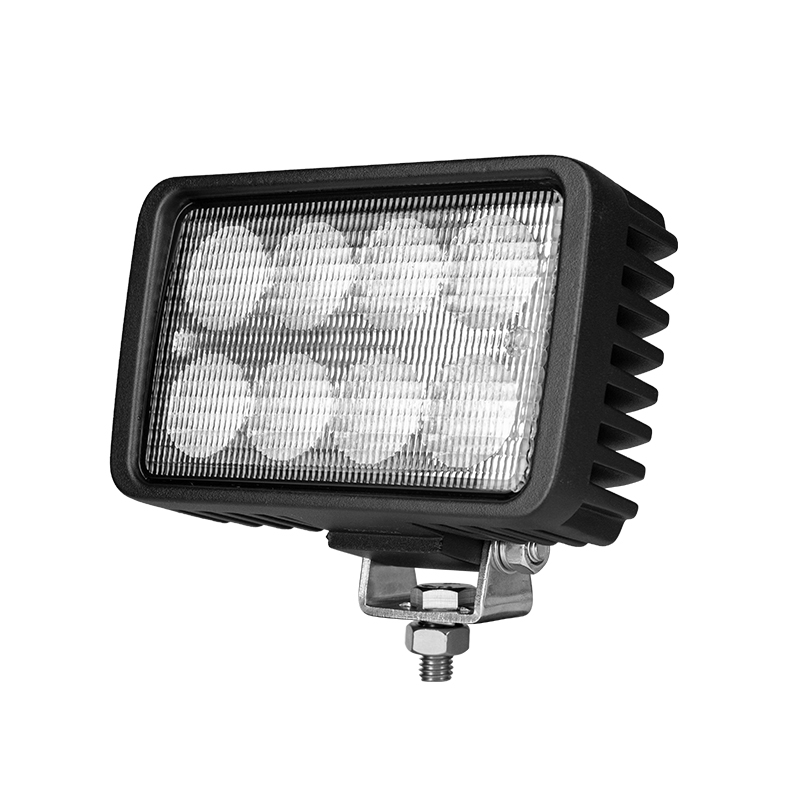

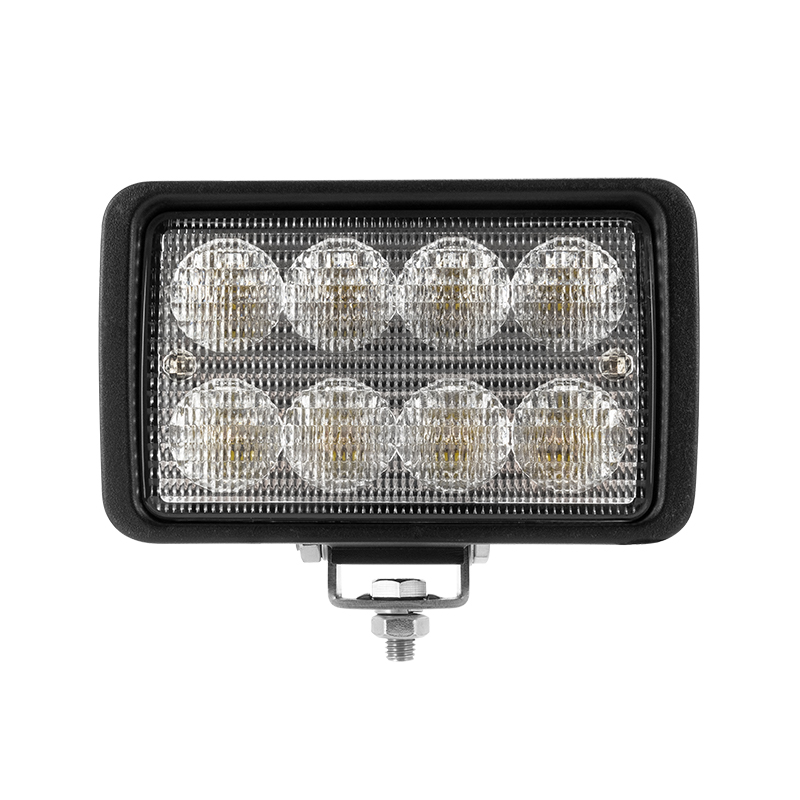

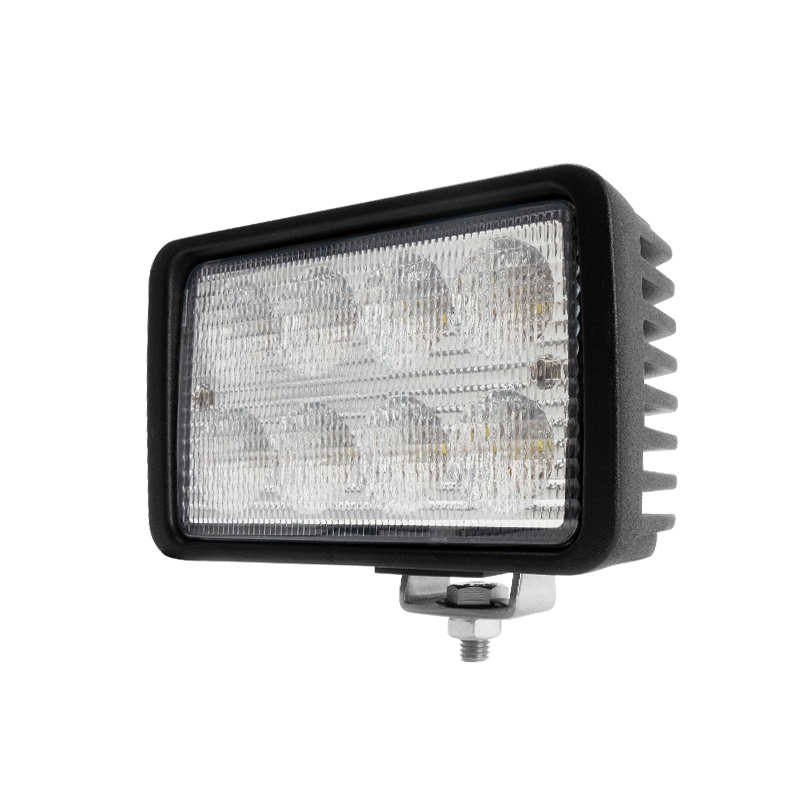

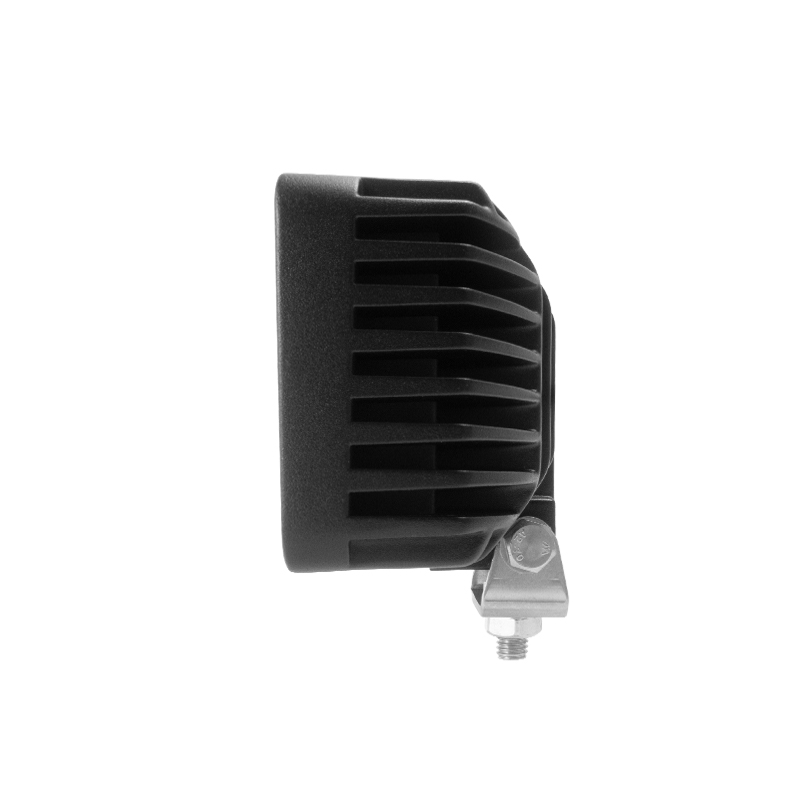

MFLamps LED Work Light delivers powerful 3200LM brightness with IP68/69K waterproofing, heavy-duty shock resistance, and a 50,000-hour lifespan. Certified ISO9001, IATF16949, CE & RoHS, it’s built for demanding automotive, marine, and industrial applications.
Certified,engineered for reliability, energy efficiency, and extreme durability—MFLamps LED Work Light ensures superior illumination in harsh environments.
| Voltage | 12/24 V | Amperage | 3.33A |
| Consumption | 40W | Operational Lumen | 3200Lumen |
| Color Temperature | 5700 K for crystal version | Light pattern | FLOOD |
| Color | Crystal | Connector | / |
| Mounting | Pedestal | Fixation | To be screwed |
| Lens Material | Polycarbonate plastic cover | Housing Material | Aluminium |
| size(Width * Depth * Height) | 151mm *74mm *119mm | Weight | 0,55 Kg |
| IP protection | IP68 - IP69K | Polarity | Protected against reverse voltage |
| Electronic Thermal Management | Full output at +35°C ambiant, 25 % dimmed at + 50°C ambiant | Operation Temperatures | -40°C to +85°C |
| Load Dump | 36V CONTINUOUS / ISO 7637-2 Pulse 5a | Salt Spray Test | ISO 9227 |
| Vibration Resistance | 15 Grms, from 24Hz to 2000Hz | Shock resistance | 60G |
| Lifetime | 30 000 operating hours | EMC | ECE R10, CISPR25 CLASS 4 |
Replaces OEM Part Numbers:
DAF: 0867446
MAN: 85251036001
MERCEDES-BENZ: A6625440147, 6625440147
STEYR: 85251036001
VOLVO: 2801243, ZM2801243, 2801243
AGCO: X830160101130
AGRIFAC: 7788678
AUWÄRTER: 14096010
AUWÄRTER: 11025260
BOMAG: 05755168
CASE IH: 2928271
FENDT: X830160101130
GOLDHOFER: 051205200
HELLA: 006876001, 1A8003060555, 1GA005060005, 1GA005060008, 1GA006875007, 1GA006876117, 1GA006876147, 1GA007506431, 1GA996188001, 1GB006876027, 006876001, 1A8003060551, 1GA005060001, 1GA005060007, 1GA006875001, 1GA006876001, 1GA006876127, 1GA006876157, 1GA007506437, 1GA996189001, 1GB996101017
HYSTER: 1483739, 1356335
JOHN DEERE: AA54055A
KEMPF: 4007011
KRAMER: 58454, 56513
KRONE: 58140820
LAG: 66VWC015
LANGENDORF: 1131955, 1084177
LIEBHERR: 2100803, 607144508
MASSEY FERGUSON: 3617494M91, 3788157M91, 427283M91, 4272783M91, 3714399M92, 427281M91, 4272781M91
NEOPLAN: 11025260
NOOTEBOOM: 0225424
O&K: 2928271
REISCH: 5011428
RENDERS: 99700237
ROSENBAUER: 951556, 529287
SCANIA: 1906627
SCHANZLIN: 2060044
SOMMER: 2800049001
SPIERINGSz: 1032607
VALMET: 3714399M92, 32527810, 34203500, 4272783M91, 3617494M91, 3788157M91, 33099700, 4272781M91
YALE 1356335
With over 10 years of experience in LED lighting for automotive and off-highway equipment, M&F provides customized, high-quality solutions. Our tailored designs and reliable performance drive client growth and success.
