Prodcut Number:

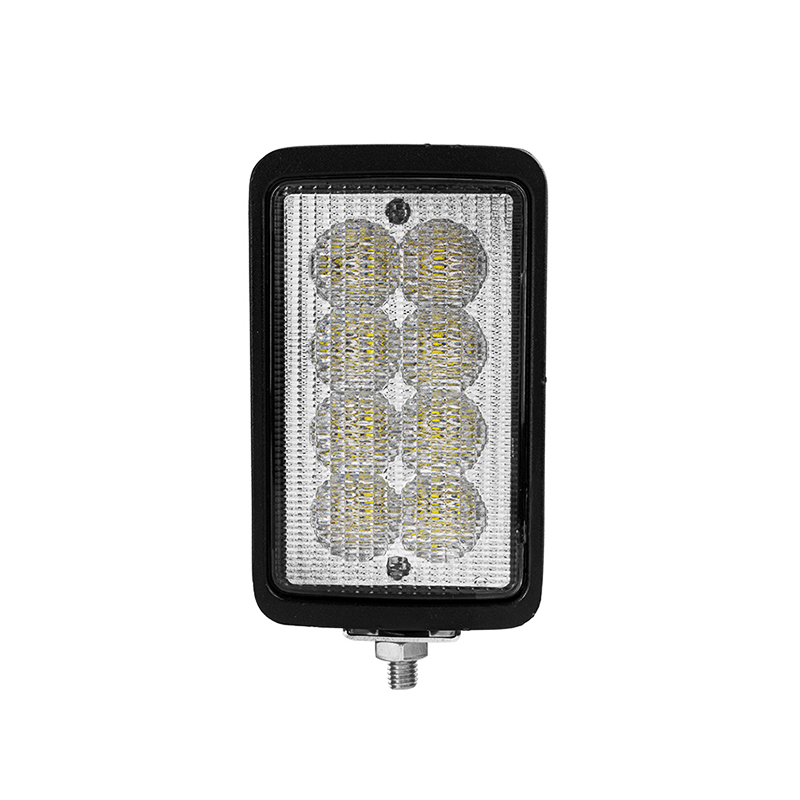

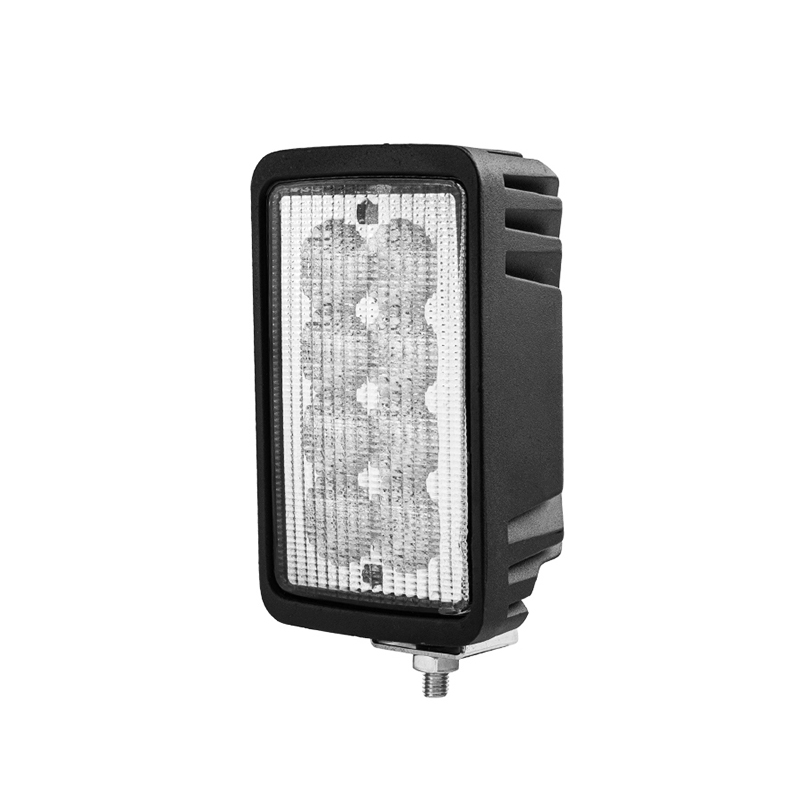

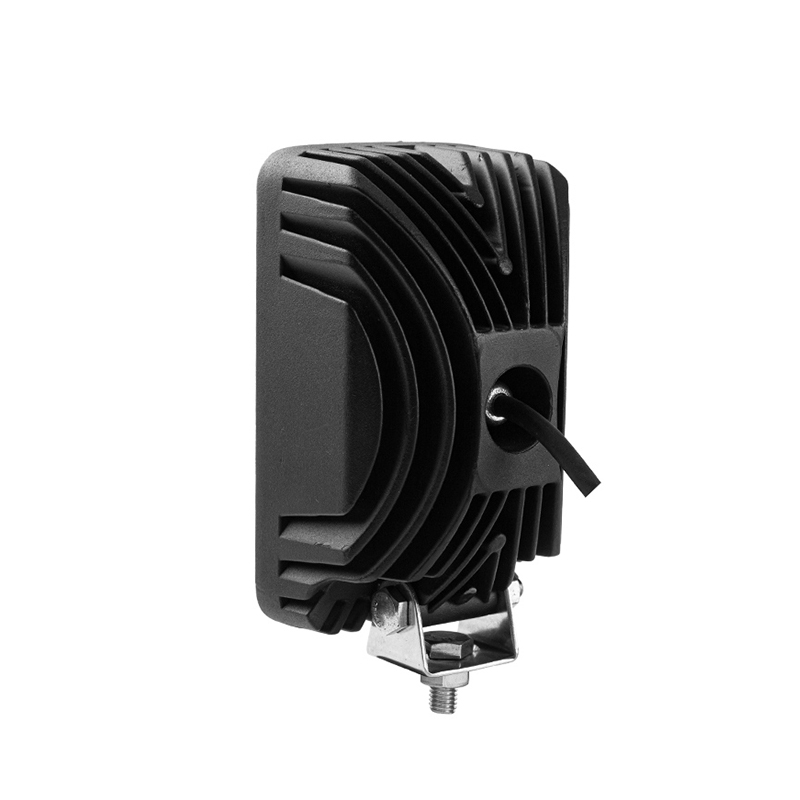

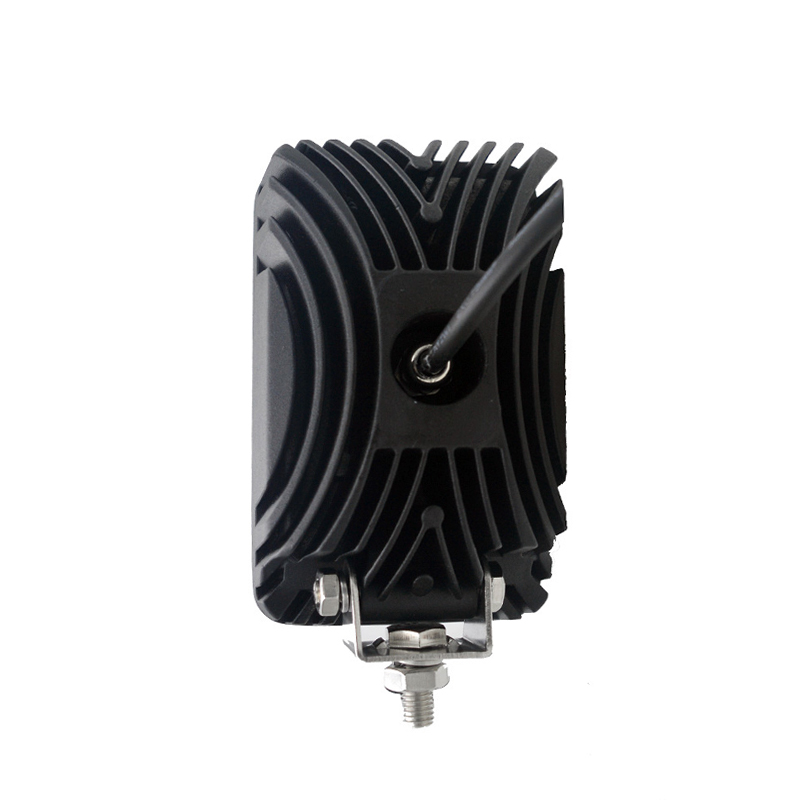

MFLamps LED Work Light delivers powerful 3200LM brightness with IP68/69K waterproofing, heavy-duty shock resistance, and a 50,000-hour lifespan. Certified ISO9001, IATF16949, CE & RoHS, it’s built for demanding automotive, marine, and industrial applications.
Replaces OEM Part Numbers:
CASE: 92266C1, 275333A1, 275334A1
Massey Ferguson: 3781544M1, 3900812M91
OEM: 4249, S.56230, S56230, 1GA006875001, 3701680M91, 3701677M91, 3771060M91, 3701680M91, 140172016, 1-40-172-016, 140172212, 1-40-172-212, 22705335000, 5182602
Certified,engineered for reliability, energy efficiency, and extreme durability—MFLamps LED Work Light ensures superior illumination in harsh environments.
| Voltage | 10-30V | Amperage | 3.33A |
| Consumption | 40W | Operational Lumen | 3200 Lumen |
| Color Temperature | 5700 K for crystal version | Light pattern | flood beam |
| Color | Crystal | Connector | / |
| Mounting | Pedestal | Fixation | To be screwed |
| Lens Material | Polycarbonate plastic cover | Housing Material | Aluminium |

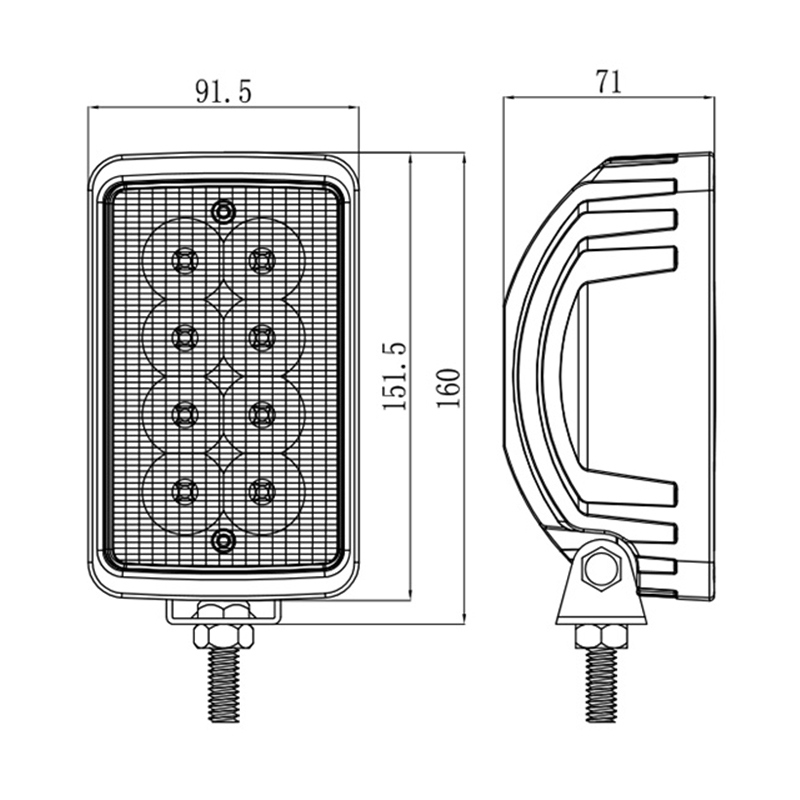

| size(Width * Depth * Height) | 91mm *71mm * 159mm | Weight | 0,55 Kg |
| IP protection | IP68 - IP69K | Polarity | Protected against reverse voltage |
| Electronic Thermal Management | Full output at +35°C ambiant, 25 % dimmed at + 50°C ambiant | Operation Temperatures | -40°C to +85°C |
| Load Dump | 36V CONTINUOUS / ISO 7637-2 Pulse 5a | Salt Spray Test | ISO 9227 |
| Vibration Resistance | 15 Grms, from 24Hz to 2000Hz | Shock resistance | 60G |
| Lifetime | 50 000 operating hours | EMC | ECE R10, CISPR25 CLASS 4 |
With over 10 years of experience in LED lighting for automotive and off-highway equipment, M&F provides customized, high-quality solutions. Our tailored designs and reliable performance drive client growth and success.
