Prodcut Number:

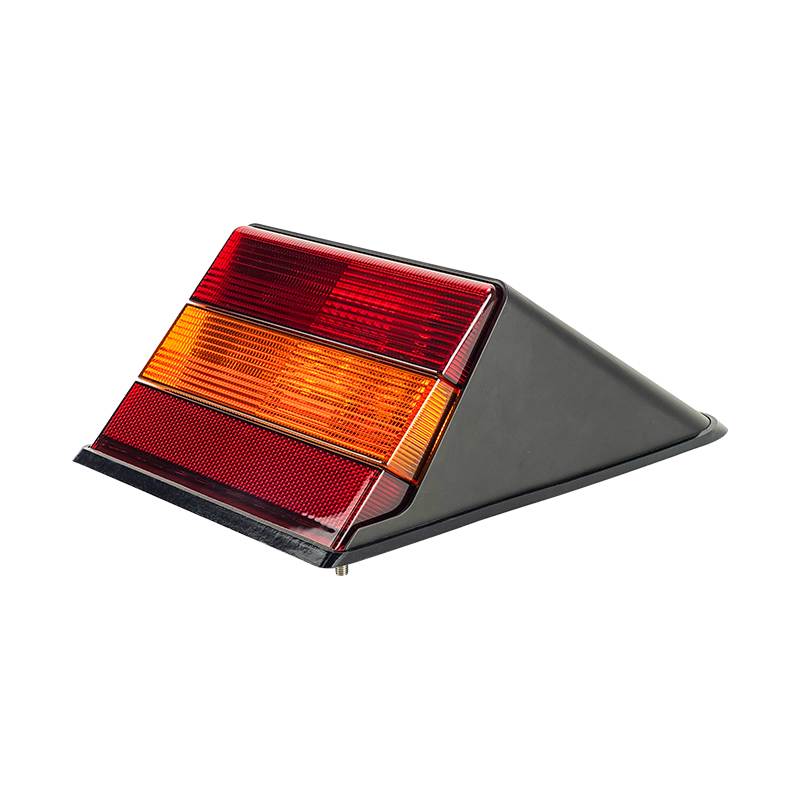

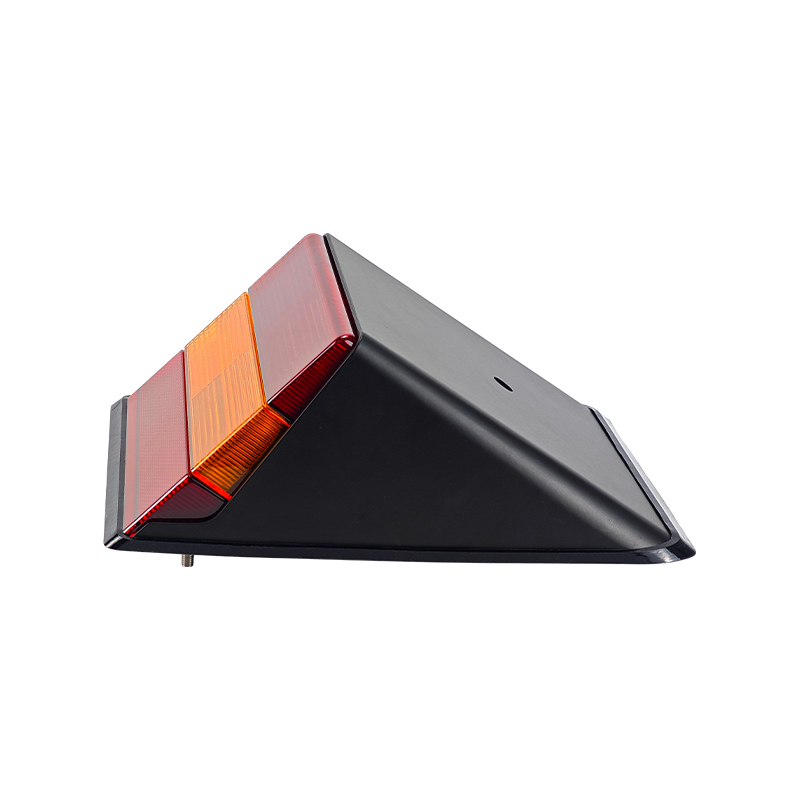

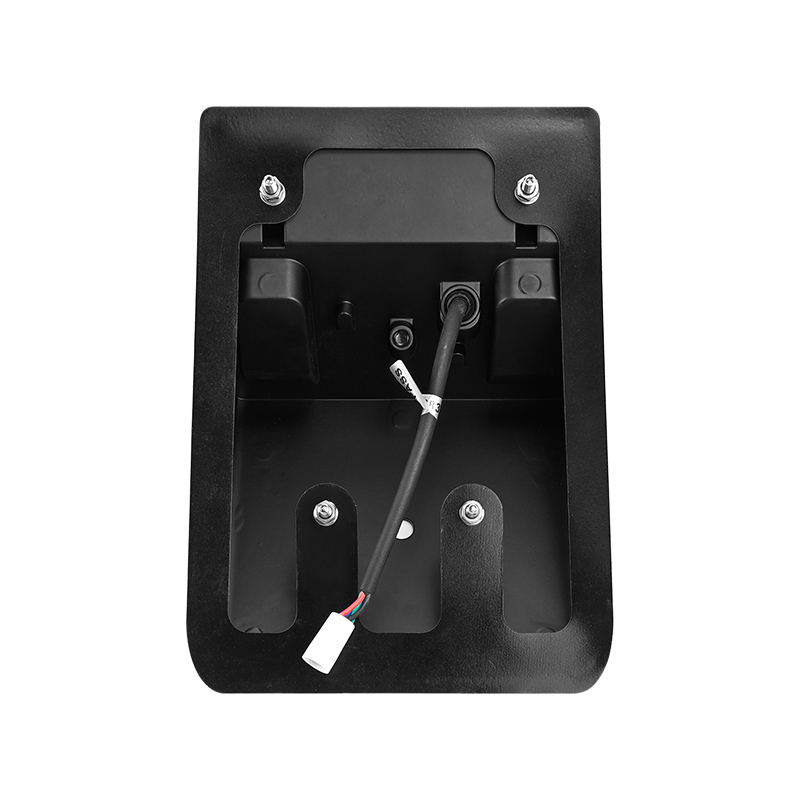

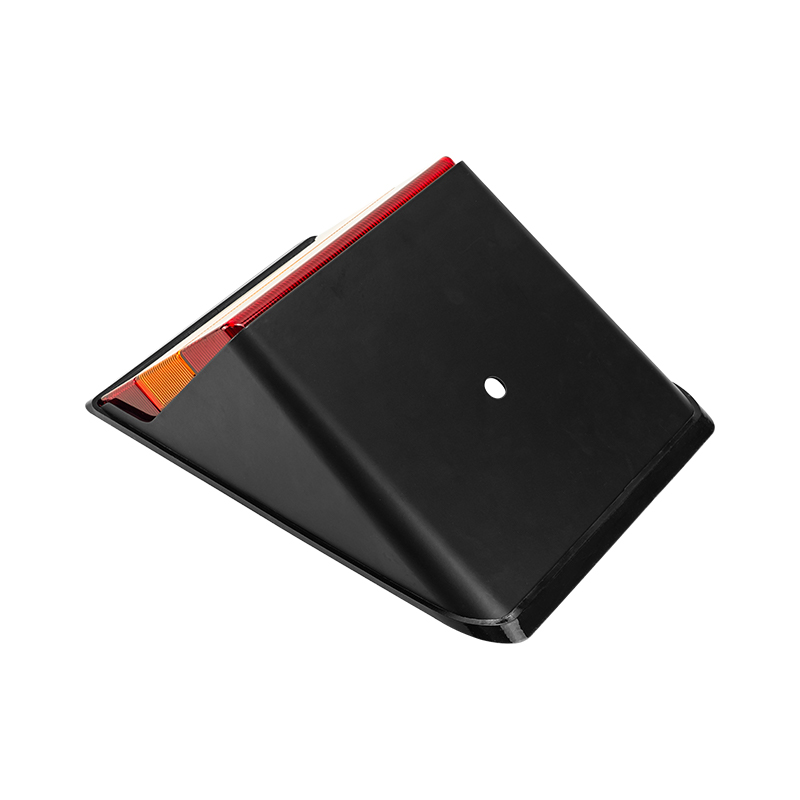

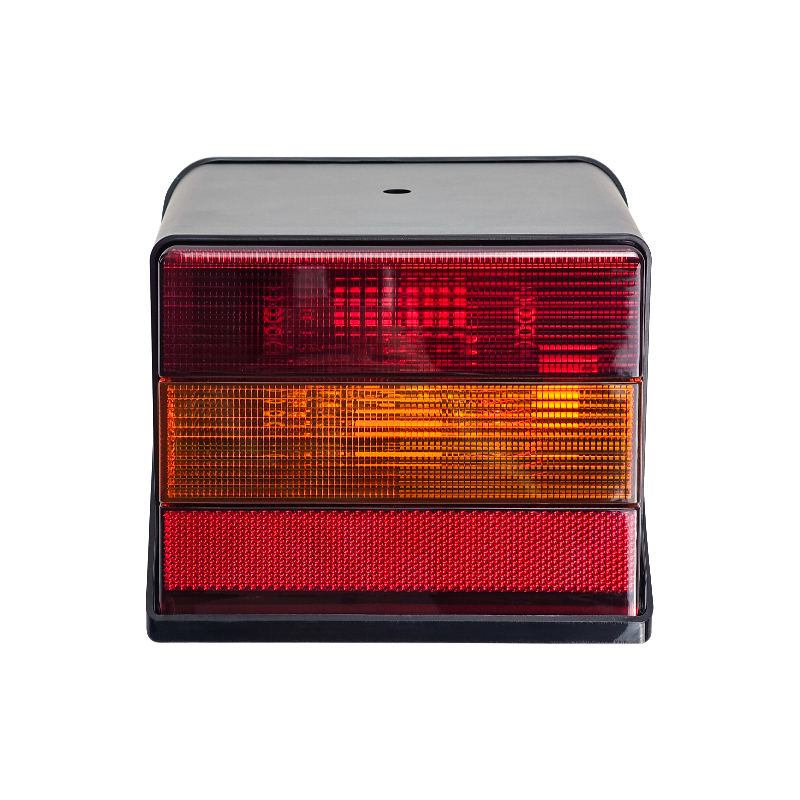

MFLamps LED signal lights deliver 1920LM brightness with IP68/69K waterproofing, heavy-duty shock resistance, and 50,000-hour lifespan—certified ISO9001, IATF16949, CE & RoHS for automotive, marine, and industrial applications
Replaces OEM Part Numbers:81864736 , F0NN13N465CA，402913
24/1912-227
F0NN13N465CA
Fitment Information：Ford New Holland Tractor
Series 40
5640, 6640, 7740, 7840, 8240, 8340
Certified, energy-efficient, and highly durable—MFLamps LED signal lights are your ideal choice for clear, unmistakable visual signaling.
| Voltage | 12/24 V | Amperage | 2A |
| Consumption | 24W | Operational Lumen | 1920Lumen |
| Color Temperature | 5700 K for crystal version | Light pattern | Brake+turn signal+tail+reverse |
| Color | Crystal | Connector | / |
| Mounting | Pedestal | Fixation | To be screwed |
| Lens Material | Polycarbonate plastic cover | Housing Material | PC |
| size(Width * Depth * Height) | mm *mm * mm | Weight | 0,55 Kg |
| IP protection | IP68 - IP69K | Polarity | Protected against reverse voltage |
| Electronic Thermal Management | Full output at +35°C ambiant, 25 % dimmed at + 50°C ambiant | Operation Temperatures | -40°C to +80°C |
| Load Dump | 36V CONTINUOUS / ISO 7637-2 Pulse 5a | Salt Spray Test | ISO 9227 |
| Vibration Resistance | 15 Grms, from 24Hz to 2000Hz | Shock resistance | 60G |
| Lifetime | 30 000 operating hours | EMC | ISO 13766 - ISO 14982 - ISO 12985 - CISPR25 Class 5 |
With over 10 years of experience in LED lighting for automotive and off-highway equipment, M&F provides customized, high-quality solutions. Our tailored designs and reliable performance drive client growth and success.
