Prodcut Number:

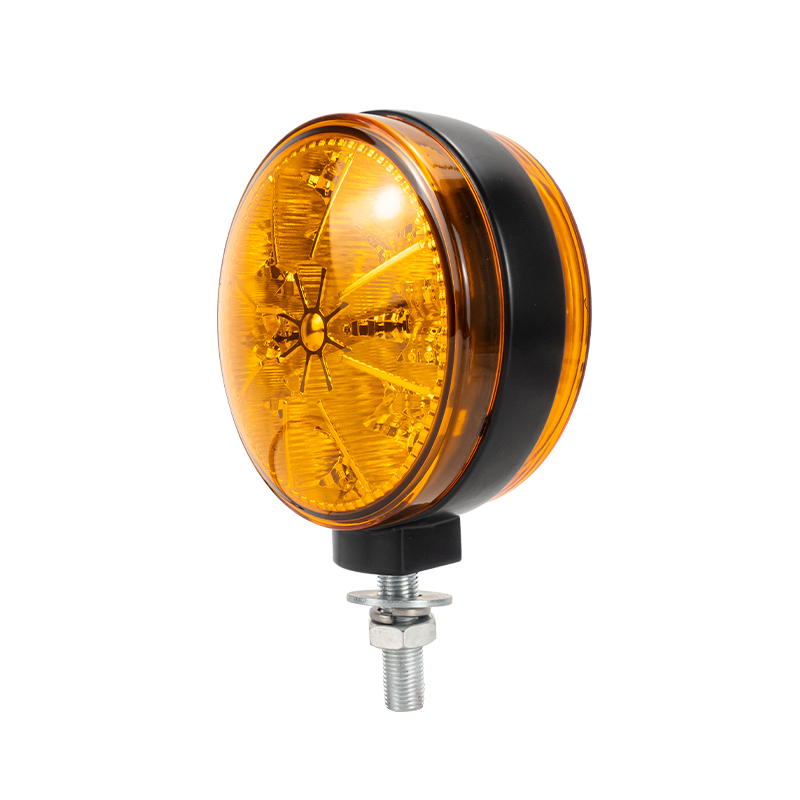

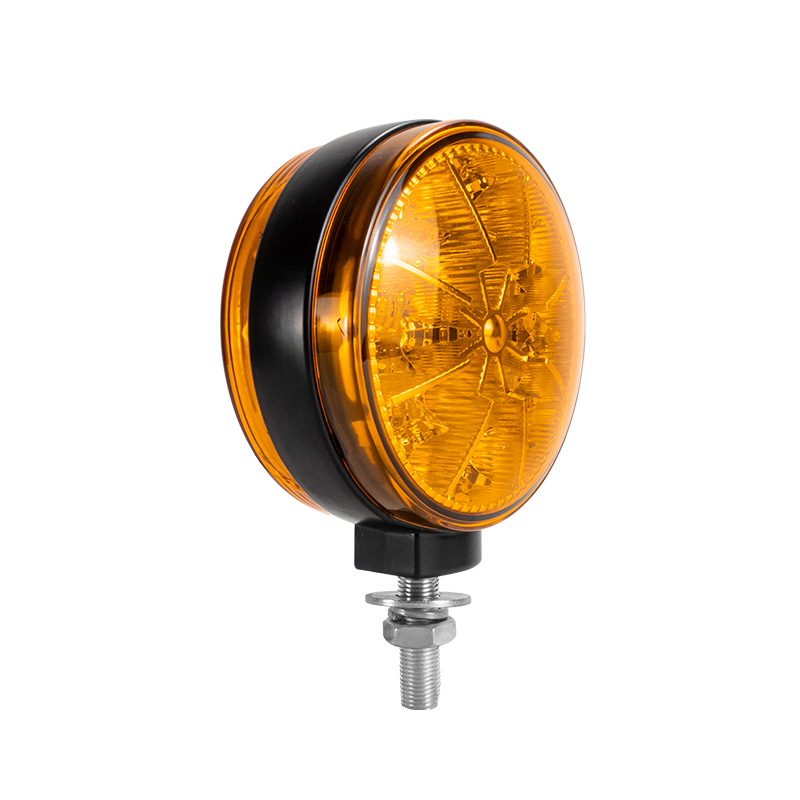

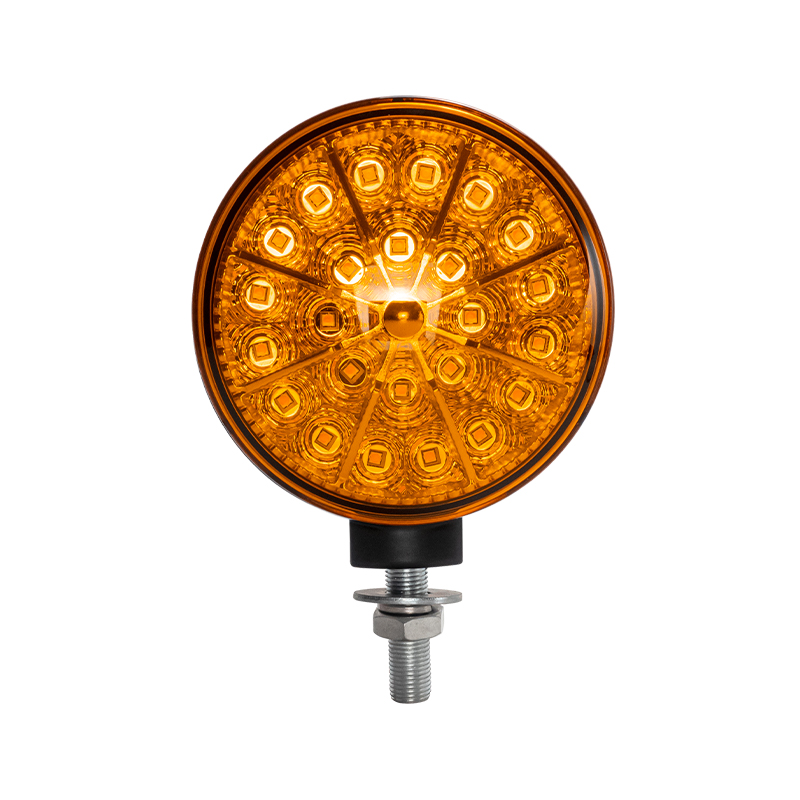

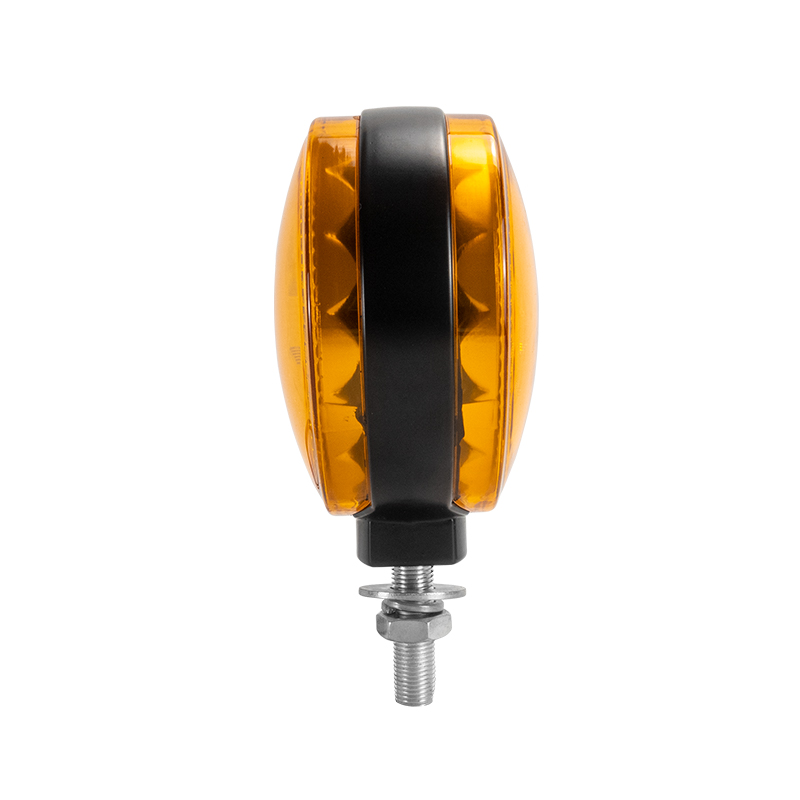

MFLamps LED signal lights combine superior visibility with long-lasting reliability. Certified with ISO9001, IATF16949, CE, and RoHS, our signal lights deliver outstanding performance for automotive, marine, and industrial signaling applications.
Voltage: 10V – 30V
Power: 48W
Light Output: 3840LM
Mounting: Side-mountable
Lifespan: Up to 50,000 hours
Certified, energy-efficient, and highly durable—MFLamps LED signal lights are your ideal choice for clear, unmistakable visual signaling.
| Voltage | 10-30V | Amperage | 4A |
| Consumption | 48W | Operational Lumen | 3840 Lumen |
| Color Temperature | 5700 K for crystal version | Light pattern | Turn Signal |
| Color | Crystal | Connector | / |
| Mounting | Pedestal | Fixation | To be screwed |
| Lens Material | Polycarbonate plastic cover | Housing Material | Aluminium |

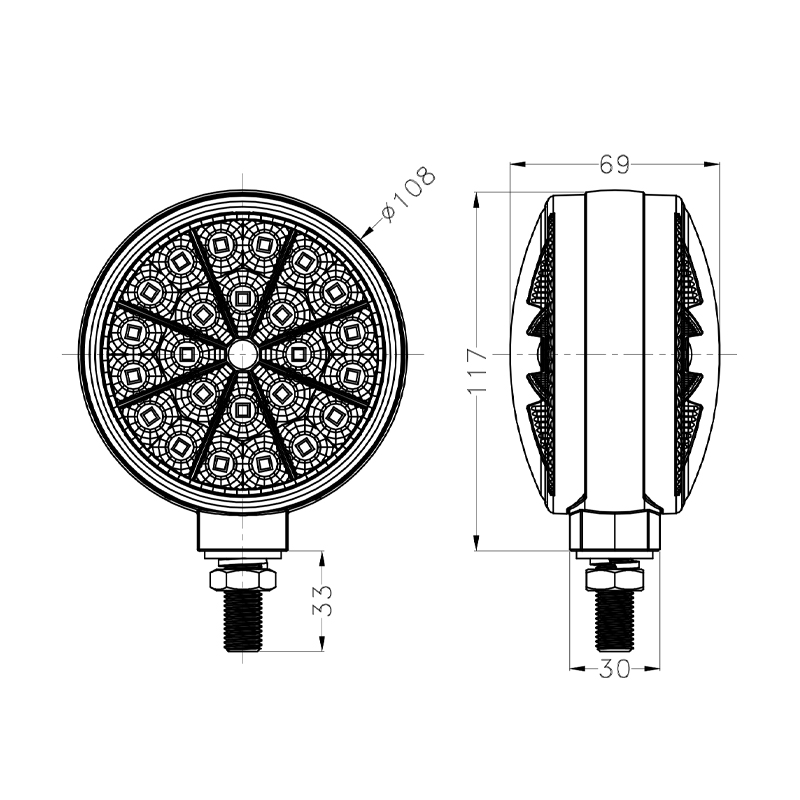

| size(Width * Depth * Height) | 108mm * 69mm * 117mm | Weight | 0,55 Kg |
| IP protection | IP68 - IP69K | Polarity | Protected against reverse voltage |
| Electronic Thermal Management | Full output at +35°C ambiant, 25 % dimmed at + 50°C ambiant | Operation Temperatures | -40°C to +80°C |
| Load Dump | 36V CONTINUOUS / ISO 7637-2 Pulse 5a | Salt Spray Test | ISO 9227 |
| Vibration Resistance | 15 Grms, from 24Hz to 2000Hz | Shock resistance | 60G |
| Lifetime | 50 000 operating hours | EMC | ECE R10，CISPR25 Class 4 |
With over 10 years of experience in LED lighting for automotive and off-highway equipment, M&F provides customized, high-quality solutions. Our tailored designs and reliable performance drive client growth and success.
