Prodcut Number:

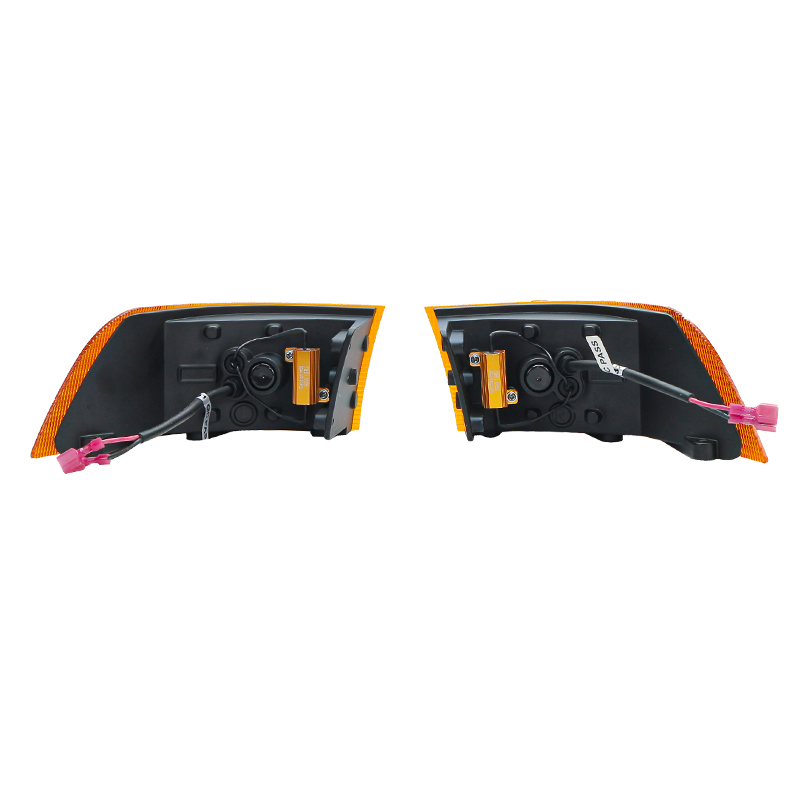

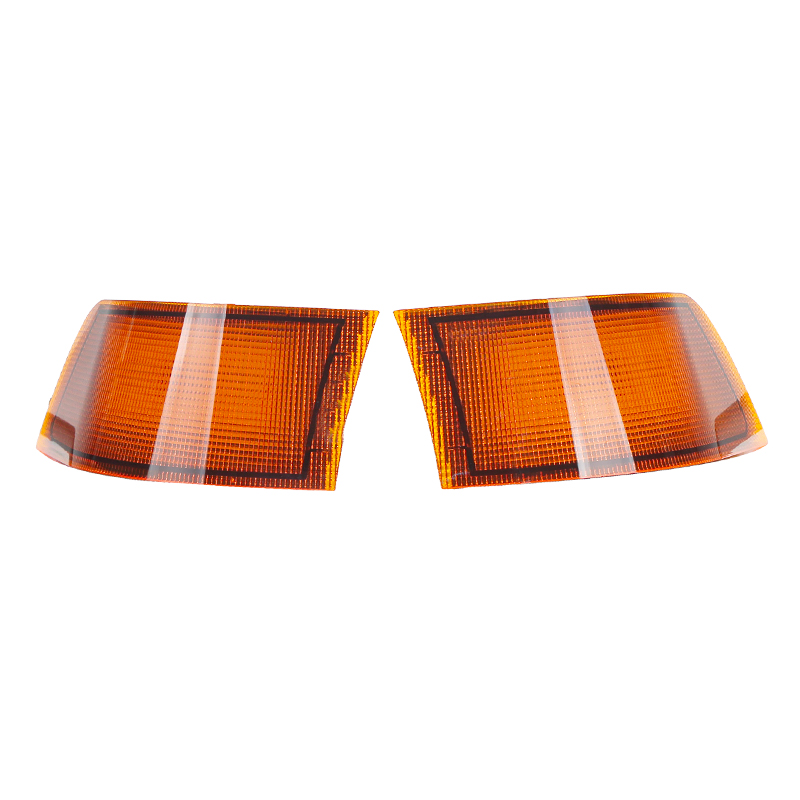

MFLamps LED signal lights combine superior visibility with long-lasting reliability. Certified with ISO9001, IATF16949, CE, and RoHS, our signal lights deliver outstanding performance for automotive, marine, and industrial signaling applications.
Voltage: 10V – 30V
Power: 24W
Light Output: 1920LM
Beam: Flood
Waterproof Rating: IP67
Mounting: Side-mountable
Lifespan: Up to 50,000 hours
Certified, energy-efficient, and highly durable—MFLamps LED signal lights are your ideal choice for clear, unmistakable visual signaling.
| Voltage | 10-30V | Amperage | 1.75A |
| Consumption | 24W | Operational Lumen | 1920 Lumen |
| Color Temperature | 5700 K for crystal version | Light pattern | Flood Light |
| Color | Crystal | Connector | / |
| Mounting | Pedestal | Fixation | To be screwed |
| Lens Material | Polycarbonate plastic cover | Housing Material | Aluminium |

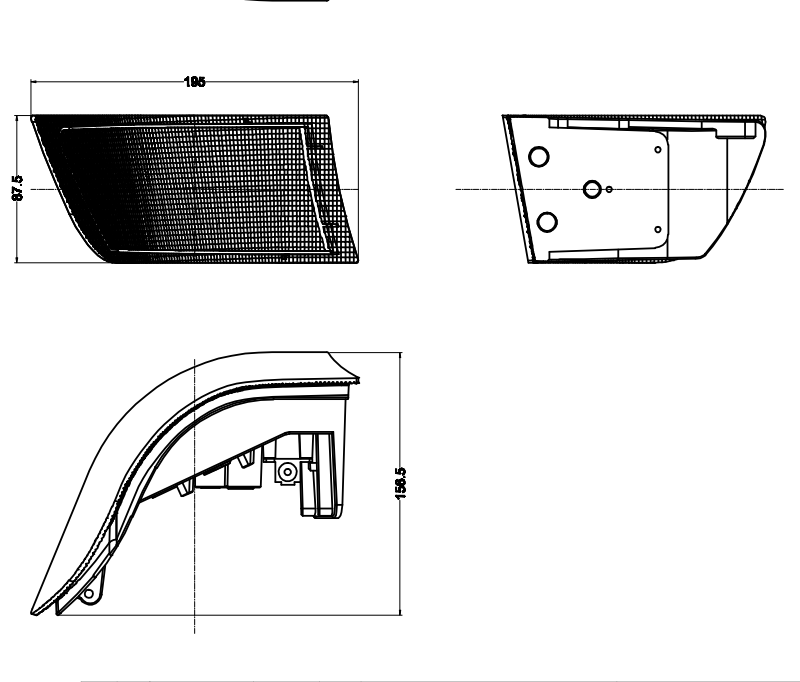

| size(Width * Depth * Height) | 195mm *87.5mm *156.5mm | Weight | 0,55 Kg |
| IP protection | IP67 | Polarity | Protected against reverse voltage |
| Electronic Thermal Management | Full output at +35°C ambiant, 25 % dimmed at + 50°C ambiant | Operation Temperatures | -30°C to +60°C |
| Load Dump | 36V CONTINUOUS / ISO 7637-2 Pulse 5a | Salt Spray Test | ISO 9227 |
| Vibration Resistance | 15 Grms, from 24Hz to 2000Hz | Shock resistance | 60G |
| Lifetime | 50 000 operating hours | EMC | ISO 13766 - ISO 14982 - ISO 12985 - CISPR25 Class 5 |
