Prodcut Number:
| MFLamps LED work lights combine excellent quality with competitive pricing. Certified with ISO9001, IATF16949, CE, and RoHS, our work lights deliver reliable performance for a wide range of professional and industrial tasks.
Voltage: 10V – 30V
Certified, durable, and cost-effective—MFLamps LED work lights are your trusted solution for high-quality illumination. |
| Voltage | 10-30V | Amperage | 13.33A |
| Consumption | 160W | Operational Lumen | 11200Lumen |
| Color Temperature | 5700 K for crystal version | Light pattern | flood/spot beam |
| Color | Crystal | Connector | DT 2 pin |
| Mounting | Pedestal | Fixation | To be screwed |
| Lens Material | Polycarbonate plastic cover | Housing Material | Aluminium |

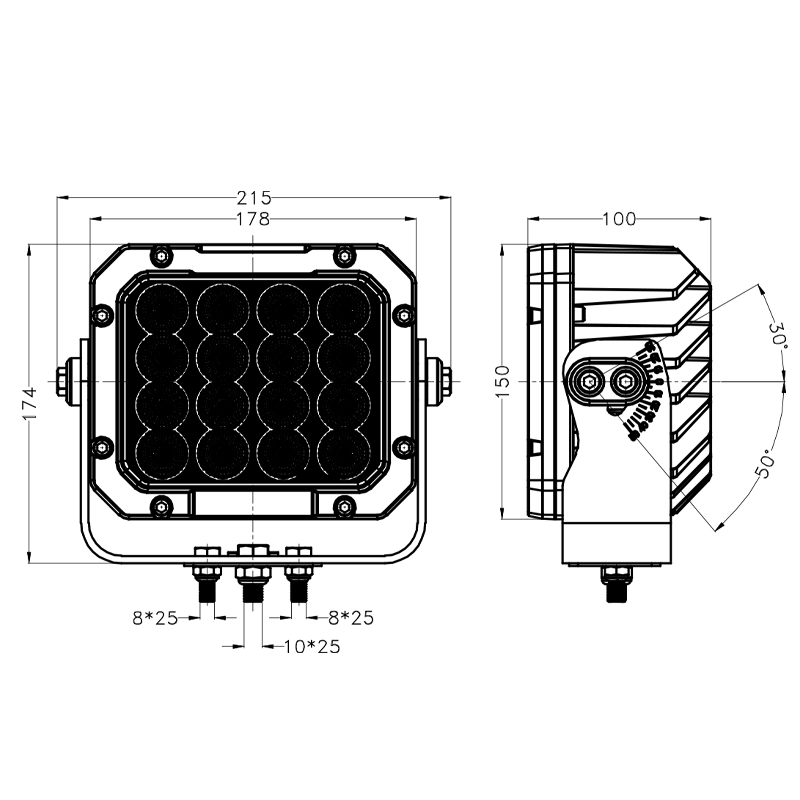

| size(Width * Depth * Height) | 215mm * 100mm * 174mm | Weight | 0.55Kg |
| IP protection | IP68 - IP69K | Polarity | Protected against reverse voltage |
| Electronic Thermal Management | Full output at +35°C ambiant, 25 % dimmed at + 50°C ambiant | Operation Temperatures | -40°C to +80°C |
| Load Dump | 36V CONTINUOUS / ISO 7637-2 Pulse 5a | Salt Spray Test | ISO 9227 |
| Vibration Resistance | 15 Grms, from 24Hz to 2000Hz | Shock resistance | 60G |
| Lifetime | 50 000 operating hours | EMC | ISO 13766 - ISO 14982 - ISO 12985 - CISPR25 Class 5 |
With over 10 years of experience in LED lighting for automotive and off-highway equipment, M&F provides customized, high-quality solutions. Our tailored designs and reliable performance drive client growth and success.
